Vertical Wall Mounted Flagpoles
MATERIAL
- ASTM B241 Cone Tapered Alloy 6063-T6 Seamless Aluminum
STANDARD EQUIPMENT
- Gold Anodized Aluminum Ball
- Cast Aluminum Stationary Truck
- Solid Braid Nylon Halyard
- Bronze Swivel Snap Hooks
- 9″ Cast Aluminum Cleat w/ S.S. Screws
- Fabricated Aluminum Pole Brackets
STANDARD FINISH
- Directional Textured Mechanical Polished Satin Brush Per AA M32
Designed for use in high density or high traffic areas where conventional ground set flagpoles are often impractical. Poles are available in aluminum, bronze and stainless steel. A full range of finishes are available. Custom designed poles are available for large skyscrapers, uniquely defining certain large buildings in a metropolitan setting.

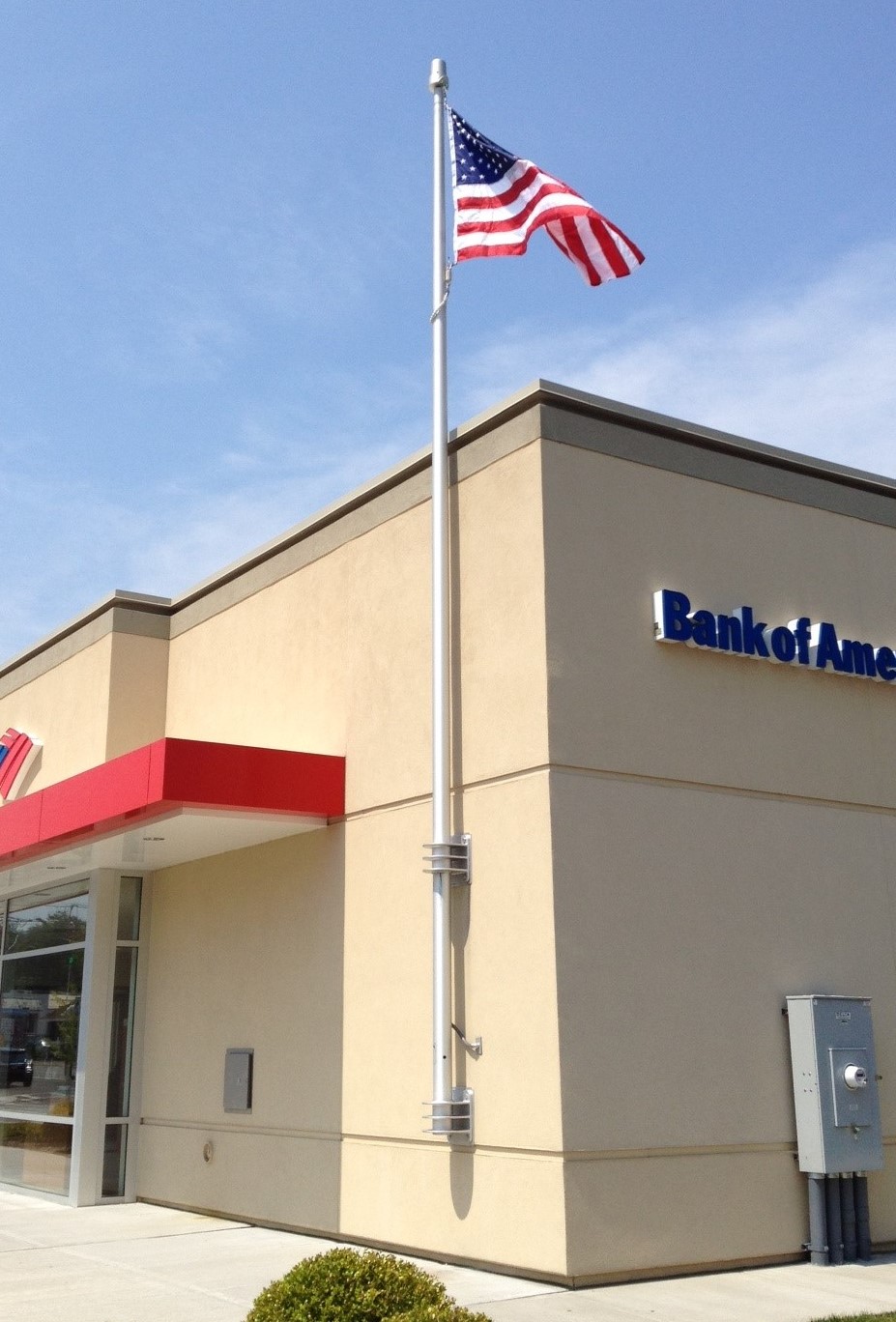

Vertical wall mounted poles are well suited for 1 to 3 story buildings such as shopping centers, firehouses, and post offices. Standard fittings include a gold anodized ball, cast aluminum truck, one set of #10 polypropylene halyard, two chrome plated bronze snap hooks, one 9″ aluminum cleat, and cast or fabricated aluminum wall brackets.
| Pole Length | Diameter | Wall Thickness | Flag Size | |
| Butt | Top | |||
| 15′ | 3″ | 1 ⅞” | .125″ | 4′ x 6′ |
| 20′ | 4″ | 1 ⅞” | .125″ | 5′ x 8′ |
| 25′ | 5″ | 3 ¼” | .188″ | 5′ x 8′ |
| 30′ | 5″ | 3 ¼” | .188″ | 5′ x 8′ |
| 35′ | 6″ | 3 ½” | .188″ | 5′ x 8′ |
| 40′ | 6″ | 3 ½” | .188″ | 6′ x 10′ |
| 50′ | 8″ | 4″ | .188″ | 8′ x 12′ |
NOTE: POLES 35′ AND OVER REQUIRE ADDITIONAL BRACING (CONSULT FACTORY)

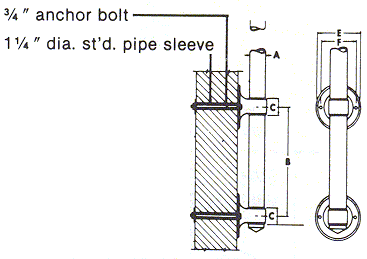

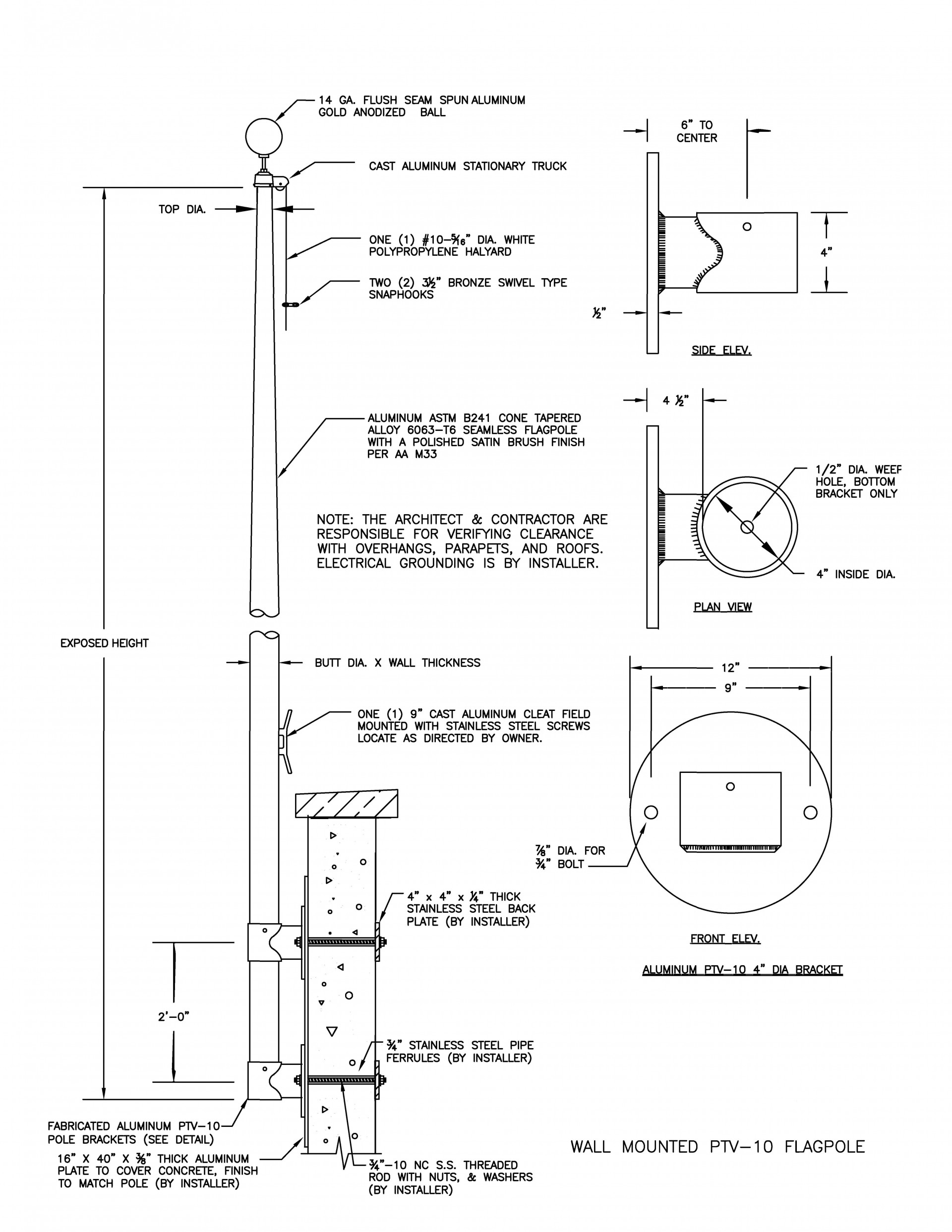

PTV-10 Wall Bracket
| Pole Length | A | B | C | E | F |
|---|---|---|---|---|---|
| 15′ | 3″ | 1 ½” | 3″ | 10 ½” | 8 ½” |
| 20′ | 4″ | 2″ | 4″ | 11 ½” | 9 ½” |
| 25′ | 5″ | 2 ½” | 4 ½” | 12″ | 10″ |
| 30′ | 5″ | 3″ | 5 ½” | 12 ½” | 10 ½” |
| 35′ | 5″ | 3 ½” | 6″ | 14″ | 12 ½” |
PTV-20 Wall Bracket
| Pole Length | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 15′ | 3″ | 1 ½” | 4 ½” | 28 ½” | 6″ | 12 ¾” | 10″ |
| 20′ | 4″ | 2″ | 4 ½” | 34 ½” | 6″ | 15 ¾” | 10″ |
| 25′ | 5″ | 2 ½” | 4 ½” | 40 ½” | 6″ | 18 ¾” | 10″ |
| 30′ | 5″ | 3″ | 4 ½” | 46 ½” | 6″ | 12 ¾” | 10″ |
| 35′ | 6″ | 3 ½” | 4 ½” | 52 ½” | 6″ | 24 ¾” | 12″ |

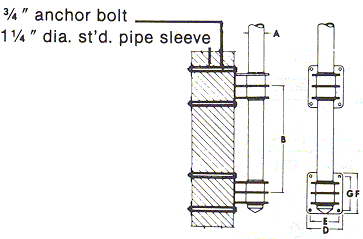

PTV-30 Wall Bracket
| Pole Length | A | B | D | E | F | G |
|---|---|---|---|---|---|---|
| 15′ | 3″ | 1 ½” | 6 ¼” | 4 ¾” | 10″ | 8 ½” |
| 20′ | 4″ | 2″ | 8 ¼” | 6 ¾” | 11″ | 9 ½” |
| 25′ | 5″ | 2 ½” | 9 ¼” | 7 ¾” | 11 ½” | 10″ |
| 30′ | 5″ | 3″ | 10″ | 8 ½” | 11 ½” | 10″ |
| 35′ | 6″ | 3 ½” | 12 ¼” | 10 ¾” | 13″ | 11 ½” |
PTV-40 Wall Bracket
| Pole Length | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 15′ | 3″ | 1 ½” | 3″ | 27″ | 6″ | 12″ | 8″ |
| 20′ | 4″ | 2″ | 4″ | 34″ | 6″ | 15 ½” | 8″ |
| 25′ | 5″ | 2 ½” | 4 ½” | 40 ½” | 6″ | 18 ¾” | 8″ |
| 30′ | 5″ | 3″ | 5″ | 47″ | 6″ | 22″ | 8″ |
| 35′ | 6″ | 3 ½” | 6″ | 51″ | 6″ | 24″ | 10″ |
