Counterbalanced Tilting Flagpoles
MATERIAL
- Cone Tapered 6063-T6 Seamless Extruded Aluminum
STANDARD EQUIPMENT
- Gold Anodized Aluminum Ball
- Single Sheave Revolving Truck
- Solid Braid Nylon Halyard
- Bronze Swivel Snap Hooks
- 9″ Cast Aluminum Cleat w/ Screws
- Steel Tabernacle
- Counterweight Material
- Galvanized Steel Anchor Bolt w/ Nuts, Flatwasher & Lockwashers
- Copper Clad Steel Lightning Rod
STANDARD FINISH
- Directional Textured Mechanical Satin Brush, AA-M3

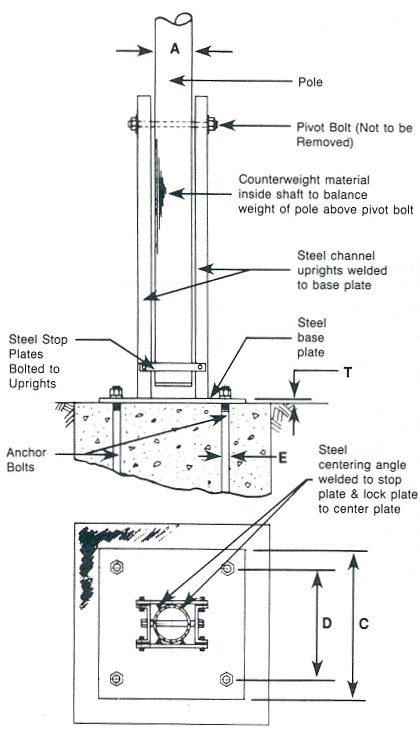

Counterbalanced Pole System : Style PT-P

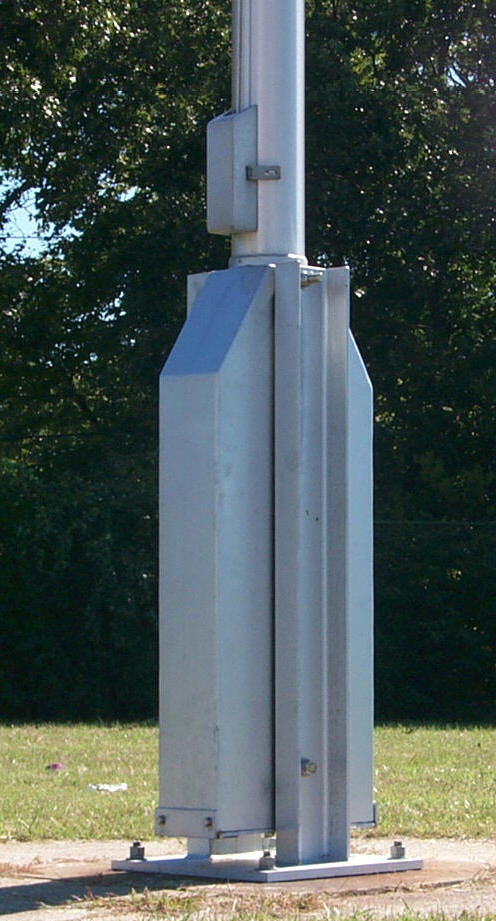

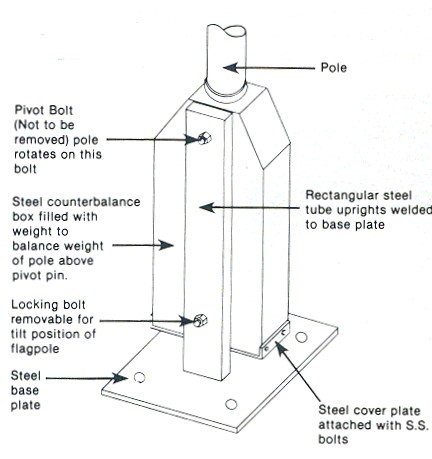

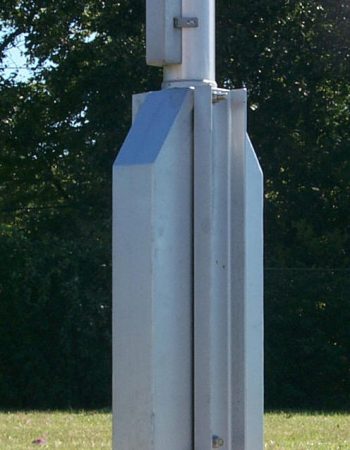

Counterbalanced Box System : Style PT-B

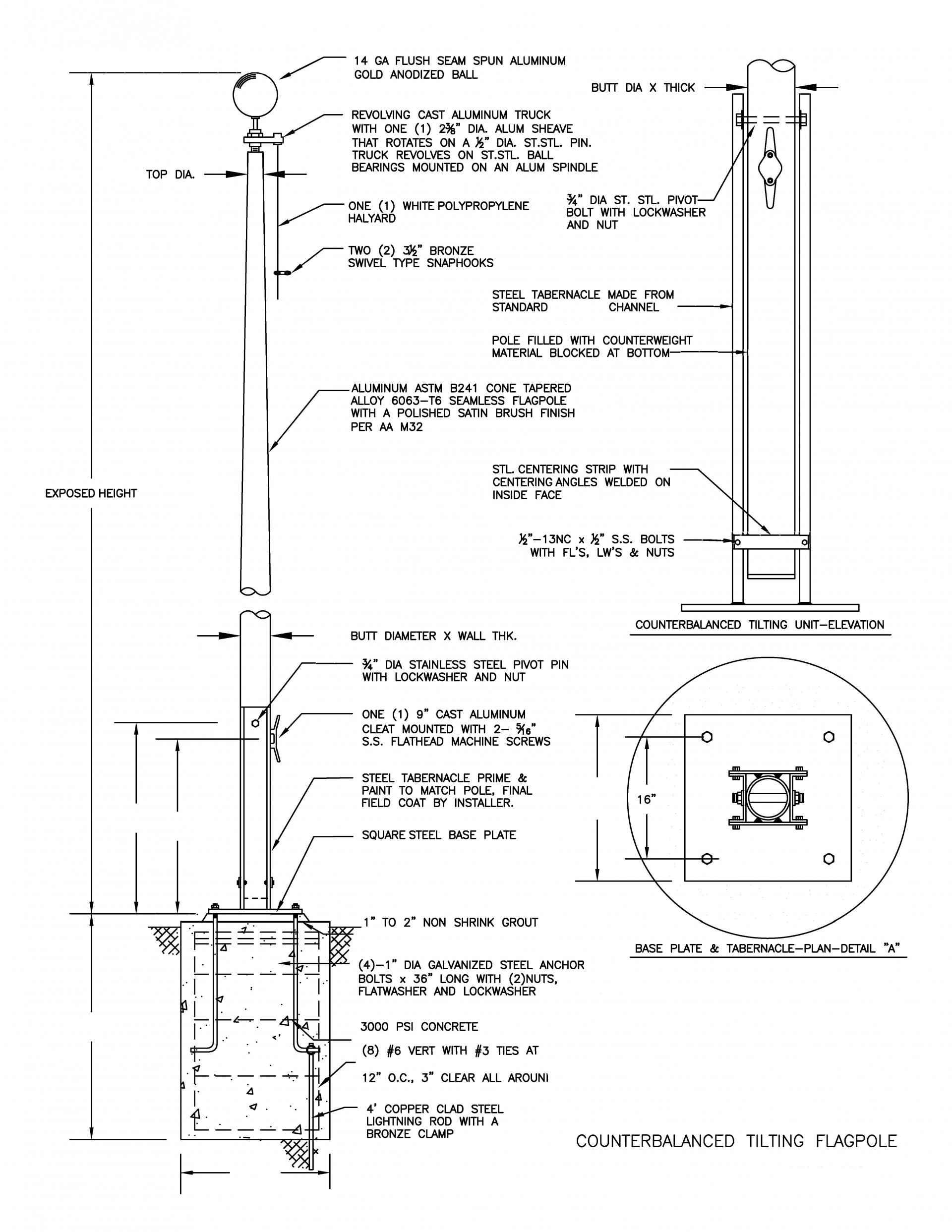

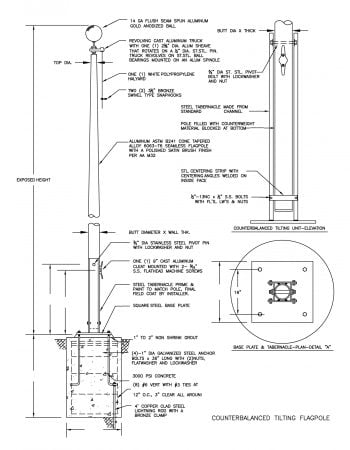

Counterbalanced tilting aluminum flagpoles are cone tapered – supplied with standard fittings and have an anchor bolt mounting system. This design provides the owner with a counterbalanced pole that can be lowered by two people. This reduces maintenance costs of servicing ropes and accessories. These poles are generally groundset but are suitable for roof top installations in the small sizes. Poles are readily available in heights up to 60 feet. A yardarm option is available.
| Pole Exposed Height | Diameter | Base Plate Size C x “C” x T | O.C. Bolt Hole “D” | Anchor Bolt Size “E” | Shipping Weights | ||
| Butt “A” | Top | Pole | Tilting Unit | ||||
| 25′ | 5″ | 3 ¼” | 20″ x 20″ x 1/2″ | 16″ | 3/4″ x 24″ | 80 | 450 |
| 30′ | 6″ | 3 ½” | 20″ x 20″ x 1/2″ | 16″ | 1″ x 36″ | 117 | 520 |
| 35′ | 7″ | 3 ½” | 24″ x 24″ x 1/2″ | 20″ | 1″ x 36″ | 153 | 610 |
| 40′ | 8″ | 3 ½” | 24″ x 24″ x 1/2″ | 20″ | 1″ x 36″ | 210 | 635 |
| 45′ | 8″ | 3 ½” | 30″ x 30″ x 3/4″ | 24″ | 1″ x 36″ | 235 | 720 |
| 50′ | 10″ | 4″ | 30″ x 30″ x 3/4″ | 24″ | 1 ¼” x 48″ | 318 | 1200 |
| 60′ | 10″ | 4″ | 36″ x 36″ x 1″ | 30″ | 1 ¼” x 48″ | 460 | 2000 |

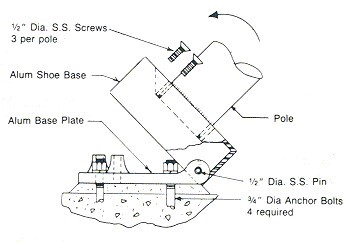

HINGED TILTDOWN SHOEBASE : STYLE PT-H
Pole-Tech’s PT-H mounting method is the most economical tilt down flagpole available. The tilting capability allows for easy access to ropes and accessories for maintenance. This mounting method is only recommended for flagpoles up to 30′. Consult the factory for available sizes.
| Flagpole Height | Butt Diameter | Top Diameter | Wall Thickness |
|---|---|---|---|
| 20′ | 4″ | 2 ⅞” | .125″ |
| 20′ | 5″ | 3″ | .156″ |
| 20′ | 5″ | 3″ | .188″ |
| 25′ | 4″ | 2 ⅞” | .156″ |
| 25′ | 5″ | 3″ | .156″ |
| 25′ | 5″ | 3″ | .188″ |
| 30′ | 5″ | 3″ | .156″ |
| 30′ | 5″ | 3 ½” | .188″ |
| 30′ | 6″ | 3 ½” | .156″ |
| 30′ | 6″ | 3 ½” | .188″ |
