Nautical Flagpoles
MATERIAL
- Cone Tapered 6063-T6 Seamless Extruded Aluminum
STANDARD EQUIPMENT
- Gold Anodized Aluminum Ball
- Single Sheave Revolving Truck
- Solid Braid Nylon Halyard
- (6) Bronze Snaphooks
- (3) 9″ Cast Aluminum Cleats
- Spun Aluminum Flash Collar
- Aluminum Yardarm
- Swivel Eye Single Pulleys
- Corrugated Steel Ground Sleeve
STANDARD FINISH
- Directional Textured Mechanical Satin Brush, AA-M3
Nautical flagpoles are ideally suited in a coastal setting. They may be single or double-masted and are usually set in an embedded concrete foundation sleeve.

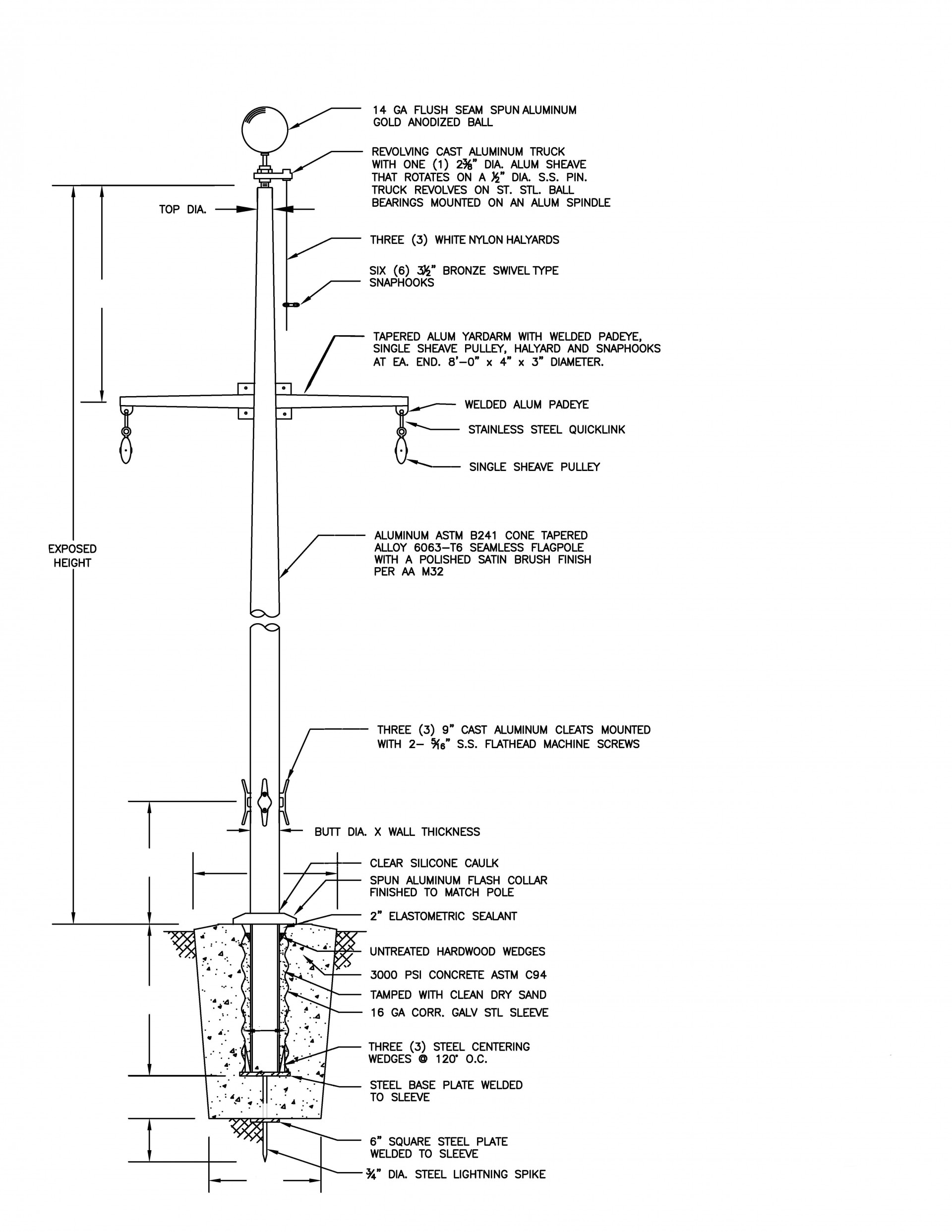

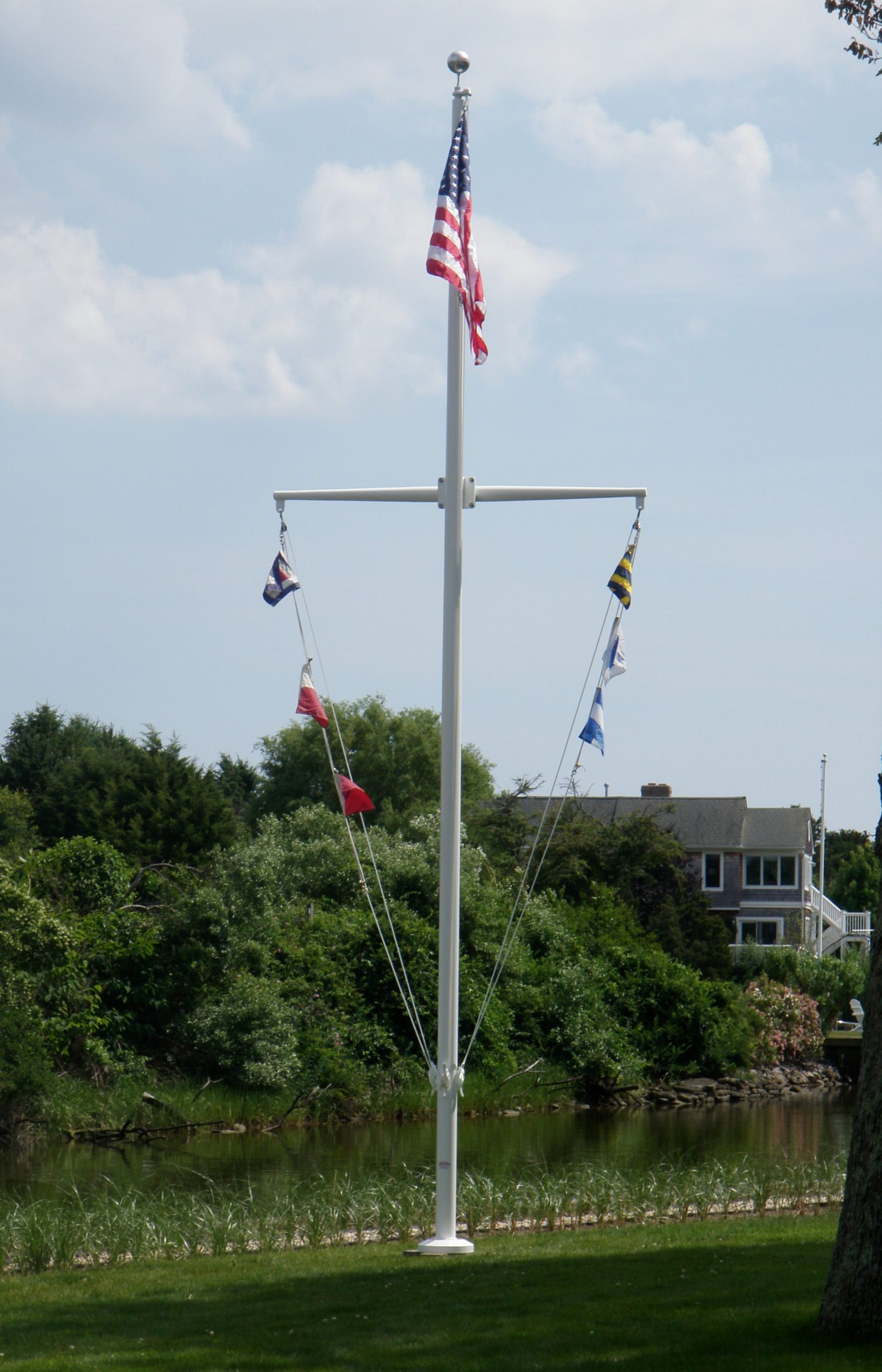

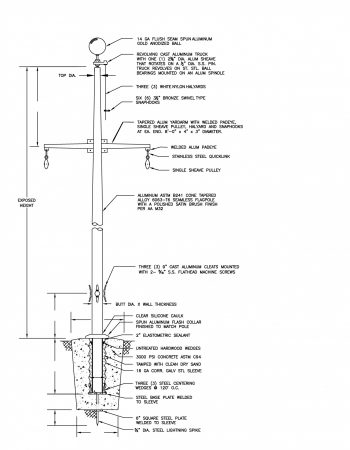

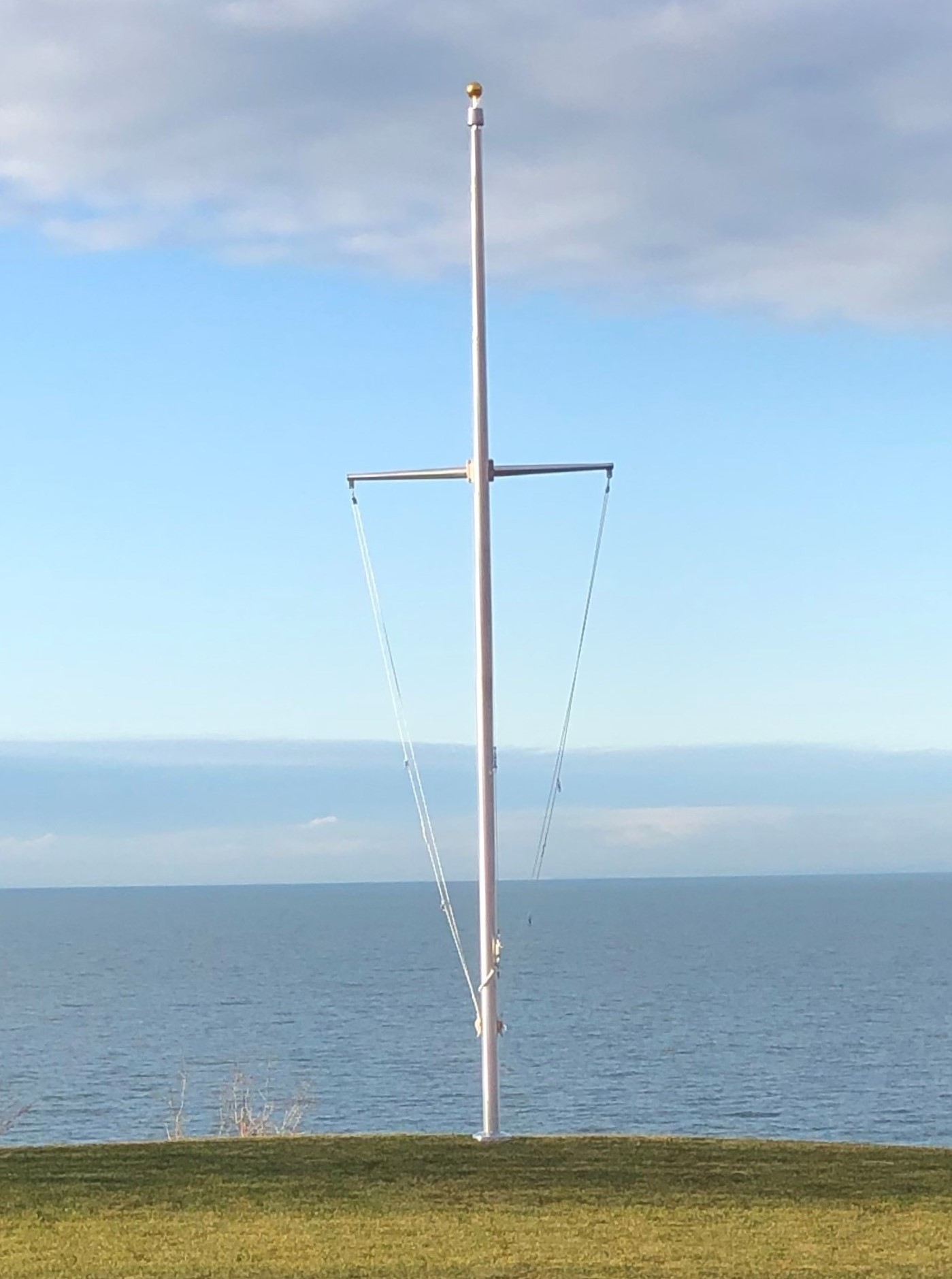

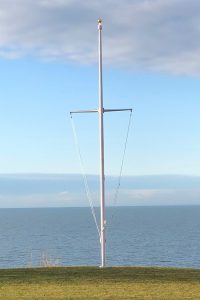

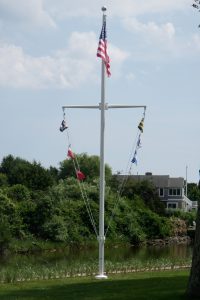

Single Masted Nautical Flagpoles with Yardarm Only are available in the same sizes as regular cone tapered poles utilizing a yardarm of size for the corresponding pole size.
Double Masted Nautical Flagpoles
| Lower Mast | Upper Mast | Yardarm | Gaff | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exposed Height | Overall Length | Butt Dia. | Top Dia. | Wall Thickness | Overlap | Exposed Length | Butt Dia. | Top Dia. | Wall Thickness | Length | Center Dia. | Ends Dia. | Length | Butt Dia. | Top Dia. | Total Weight of Complete Assembly |
| 30′ | 21′ | 6″ | 5″ | .188″ | 1 ½’ | 12′ | 4″ | 3″ | .188″ | 8′ | 4″ | 2 ⅞” | 6′ | 4″ | 2 ⅞” | 210 lbs |
| 35′ | 24 ½’ | 7″ | 5″ | .188″ | 2′ | 14′ | 5″ | 3″ | .188″ | 9 ½’ | 4″ | 2 ⅞” | 7′ | 4″ | 2 ⅞” | 325 lbs |
| 40′ | 28′ | 8″ | 6″ | .250″ | 2′ | 16′ | 6″ | 3 ½” | .188″ | 10 ¾’ | 4″ | 2 ⅞” | 8′ | 4″ | 2 ⅞” | 405 lbs |
| 45′ | 31 ½’ | 10″ | 6″ | .250″ | 2′ | 18′ | 6″ | 3 ½” | .188″ | 12′ | 4″ | 2 ⅞” | 9′ | 4″ | 2 ⅞” | 460 lbs |
| 50′ | 35′ | 10″ | 7″ | .250″ | 2′ | 20′ | 7″ | 4″ | .250″ | 13 ½’ | 5″ | 3″ | 10′ | 5″ | 3″ | 615 lbs |
| 55′ | 38′ | 12″ | 7″ | .250″ | 2′ | 22′ | 7″ | 4″ | .250″ | 14 ¾’ | 5″ | 3″ | 10 ¾’ | 5″ | 3″ | 665 lbs |
| 60′ | 42′ | 12″ | 8″ | .250″ | 2 ½’ | 24′ | 8″ | 4″ | .250″ | 15′ | 5″ | 3″ | 12′ | 5″ | 3″ | 1045 lbs |
| 70′ | 49′ | 12″ | 8″ | .375″ | 3′ | 28′ | 8″ | 4″ | .250″ | 16′ | 5″ | 3″ | 14′ | 5″ | 3″ | 1213 lbs |
