Outrigger Wall Mounted Flagpoles

Home / Products / Flagpoles / OUTRIGGER WALL MOUNTED

MATERIAL

  • ASTM B241 Cone Tapered Alloy 6063-T6 Seamless Aluminum

STANDARD EQUIPMENT

  • Gold Anodized Aluminum Ball
  • Cast Aluminum Stationary Truck
  • Solid Braid Nylon Halyard
  • Bronze Swivel Snap Hooks
  • Stainless Steel Eyebolt w/ Double Block Pulley
  • 9″ Cast Aluminum Cleat w/ S.S. Screws
  • Cast Aluminum Inner Sleeve
  • Cast Aluminum Escutchen

STANDARD FINISH

  • Directional Textured Mechanical Polished Satin Brush Per AA M32

Designed for use in high density or high traffic areas where conventional ground set flagpoles are often impractical. Poles are available in aluminum, bronze and stainless steel. A full range of finishes are available. Custom designed poles are available for large skyscrapers, uniquely defining certain large buildings in a metropolitan setting.

Outrigger flagpoles set well above traffic corridors are ideally suited to aesthetically enhance a structure. Standard fittings include a gold anodized ball, stationary truck, one halyard, two chrome plated bronze snap hooks, one cast aluminum cleat, and a cast or fabricated aluminum bracket.

Pole LengthDiameterWall ThicknessBallFlag Size
ButtTop
8′4″2 ⅞” .125″4″4′ x 6′
10′4″2 ⅞” .125″4″4′ x 6′
12′4″2 ⅞” .125″4″4′ x 6′
14′4″2 ⅞” .125″4″4′ x 6′
16′4″2 ⅞” .125″4″5′ x 8′
18′4″2 ⅞” .125″4″5′ x 8′
20′4″2 ⅞” .125″4″6′ x 10′
NOTE: POLES 15′ AND OVER REQUIRE ADDITIONAL BRACING (CONSULT FACTORY)

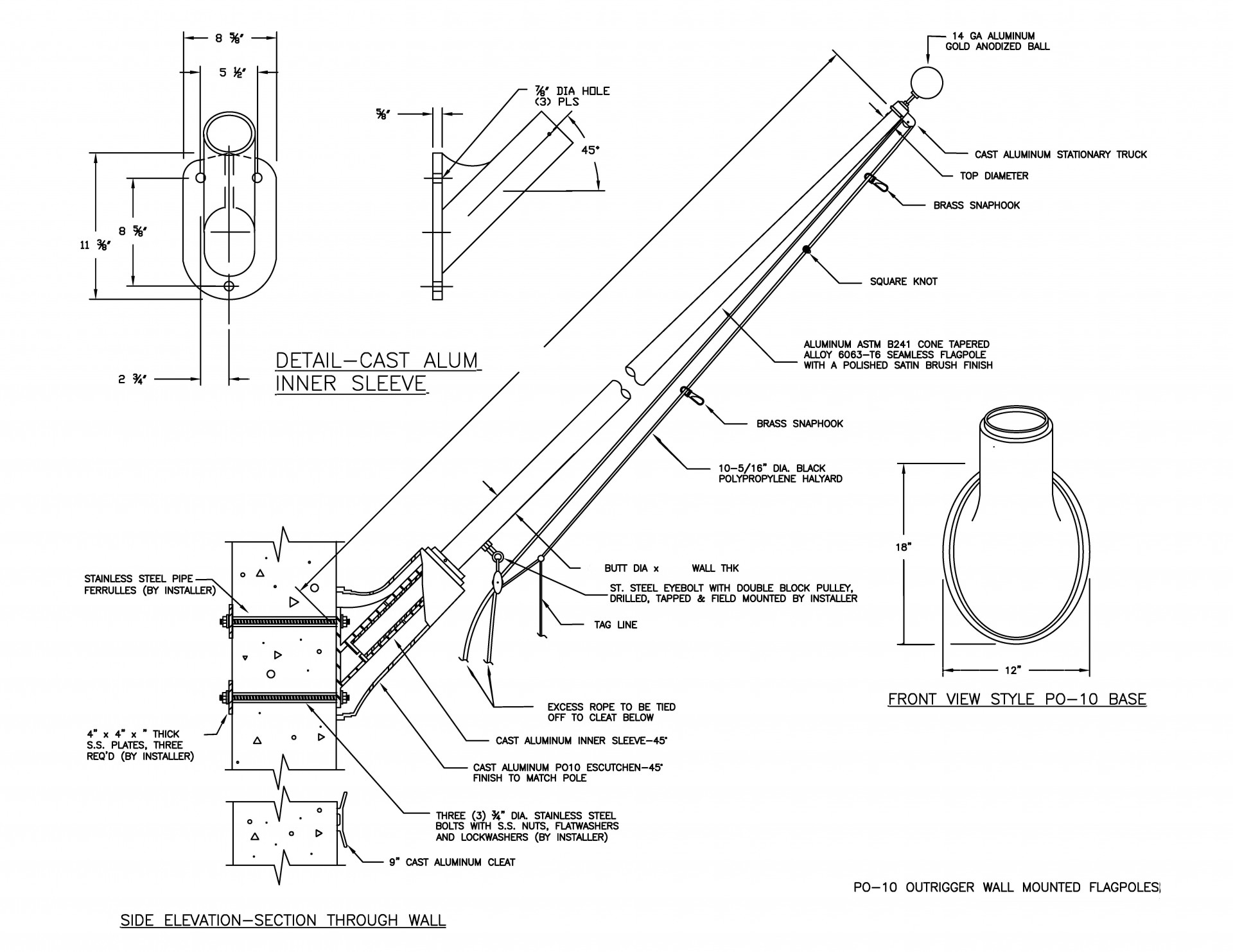

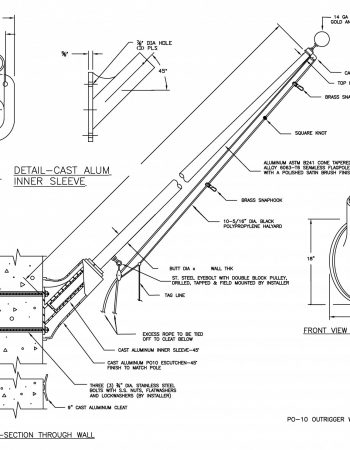

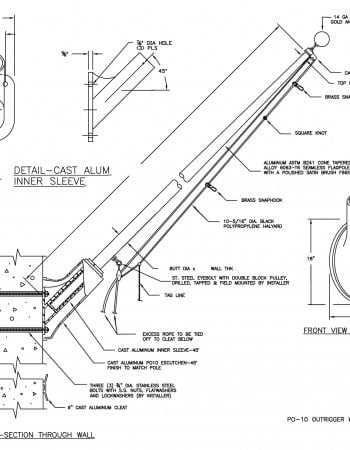

PO-10

PO-20

PO-30
